Steel Ladle Campaign Life: The Role of DBM

Steel Ladle Campaign Life: The Role of DBM

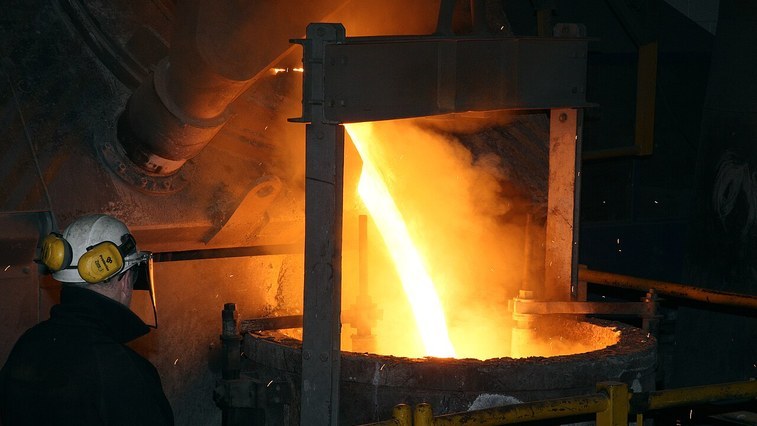

In secondary steelmaking, the ladle is where molten steel is held, alloyed and trimmed before casting. Its refractory lining endures extreme thermal cycling, mechanical abrasion and aggressive slag. Dead burned magnesia (DBM) is the material that lets operators push ladle campaign life higher while protecting steel cleanliness.

Why DBM Outperforms at High Temperature

Dead burned magnesia is sintered at very high temperature, producing a dense, low-reactivity crystal with high MgO content and excellent resistance to slag penetration. Unlike lighter-calcined material, DBM does not shrink or degrade rapidly when exposed to molten metal and basic slag, which is exactly the behavior a ladle wall needs.

Slag Resistance and Campaign Life

The dominant ladle failure modes are slag erosion and thermal spalling. High-purity DBM with low silicate and iron impurity forms a stable refractory matrix that resists chemical attack from calcium-aluminate slags. Combined with proper installation, this extends the number of heats per lining and reduces downtime for relining.

Powder, Granular and Lumps

Ladle refractories are built from several DBM forms: fine powder for gunning and patching, granular material for ramming mixes, and larger lump or grain for brick and shape production. HOLY supplies DBM powder 325 mesh, DBM granular 0-4mm and DBM 3-5/5-15mm to match each process step.

Sizing for Installation

Graded DBM grain packs densely and sinters consistently during heat-up, minimizing porosity that slag could exploit. Buyers should specify the grain-size distribution for each application - gunning mix, ramming mass or brick - so the supplier can deliver a matched blend rather than a generic grade.

What Buyers Should Verify

Request MgO content, CaO/SiO2 ratio, bulk density, and a grain-size analysis for each fraction. Consistent chemistry batch to batch protects lining performance. HOLY documents every shipment and accepts third-party inspection.

HOLY Perspective

HOLY (CNMGO Group Limited) manufactures dead burned magnesia, fused magnesia and CCM at its Dashiqiao, Liaoning base, exporting to 50+ countries. For ladle refractory buyers, we recommend qualifying DBM on MgO, impurity ratio and graded sizing - not price alone.
